Features

l   Low powerconsumption

l  Low voltage drop

l  Low temperature coefficient

l  Low Quiescent Current: 3uA at  6V

l  Output voltage accuracy: tolerance ±2%

Applications

l  Battery-powered equipment

l  Reference voltage sources

l  Cameras,video cameras

l  Portable AV systems

l  Mobile phones

l  Portable games

General Description

6206 series are a highlyprecise, lower consumption, 3 terminal,positive voltage regulators manufacturedusing CMOS and laser trimming technologies. The series provides large currentswith a significantly small dropout voltage .

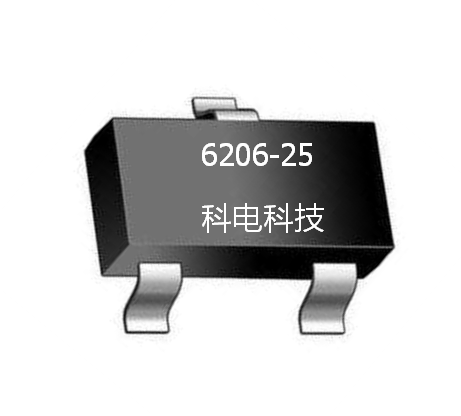

The 6206 consists of acurrent limiter circuit, a driver transistor, a precision reference voltage andan error correction circuit.  The seriesis compatible with low ESR ceramic capacitors. The current limiter’s foldbackcircuit operates as a short circuit protection as well as the output currentlimiter for the output pin. Output voltages are internally by laser trimmingtechnologies. It is selectable in 0.1V increments within a range of 1.2V to5.0V.  6206 series are available in SOT-23、SOT23-3and SOT-89 packages.
